Universal fastening device УК(У)-200

Accessory Type Fastening Devices

Product Weight ±10% 5.21 kg

Material Steel

Product Volume 0.009324 m3

Packaging Type Stretch Wrap

Coating PLC, Zinc

Operating Temperature Minus 60 °C to 40 °C

Product Dimensions (L × W × H), mm 252х200х185

Hole Diameter 17 mm

Support Corner Size 140 ... 200 mm

Working Load 30 kN

Description

Universal fastening device УК(У)-200 is used to firmly attach ADSS cables or OPGWs to metal structures of OPL.

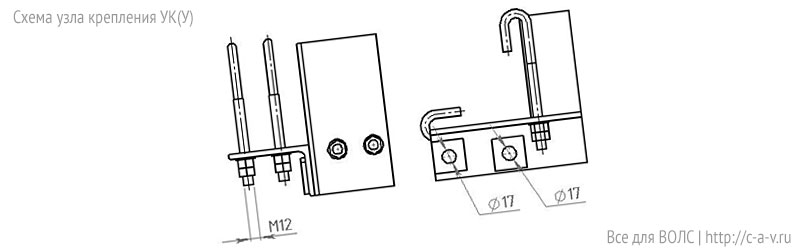

Diagram of universal device УК(У)-200

Схема универсального узла крепления УК(У)-200
