Tension fastening device УН(У)-200 is used to firmly attach ADSS cables or OPGWs to metal structures of OPL.
Delivery set of tension fastening device
- U-bolt — 1 pc.
- Hook — 2 pcs.
- Nut — 4 pcs.
- Washer — 2 pcs.

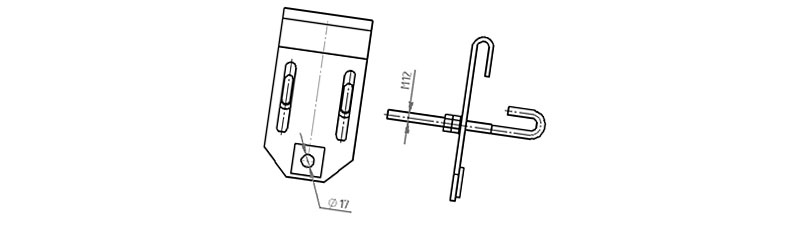

Device УН(У)-200 schematic view
Installation of fastening device УН(У)-200
Devices УН(У)-200 like other FOC fastening devices and components are installed according to parameters specified in the project. One support — two devices УН(У)-200. To install at the set height, two shackles are used fastened to the vertical corner flange of PTL and FOCL supports. The shackle fastening hole is at the same position.
Then, FOCs are installed using spiral clamps GTADSS or clamps НСО-А2-П-Дк.
