Tension device УН.САУ10П for fastening of FOCs

Accessory Type Fastening Devices

Product Weight ±10% 7.3 kg

Material Steel

Product Volume 0.013357 m3

Packaging Type Stretch Wrap

Coating PLC, Zinc

Operating Temperature Minus 60 °C to 40 °C

Product Dimensions (L × W × H), mm 685х390х50

Hole Diameter 17 mm

Working Load ≤ 2.5 kN

Support Legs Series С10П САУ 10П.1

Leg Size at Device Fastening Point - at cross-arm: 460±30 mm; - at stud - 229±5 mm

Description

Tension device УН.САУ10П is used for fastening of and hold ADSS cables at series С10П metal supports.

Min. working load — 2,5 kN.

Delivery set of УН.С10П:

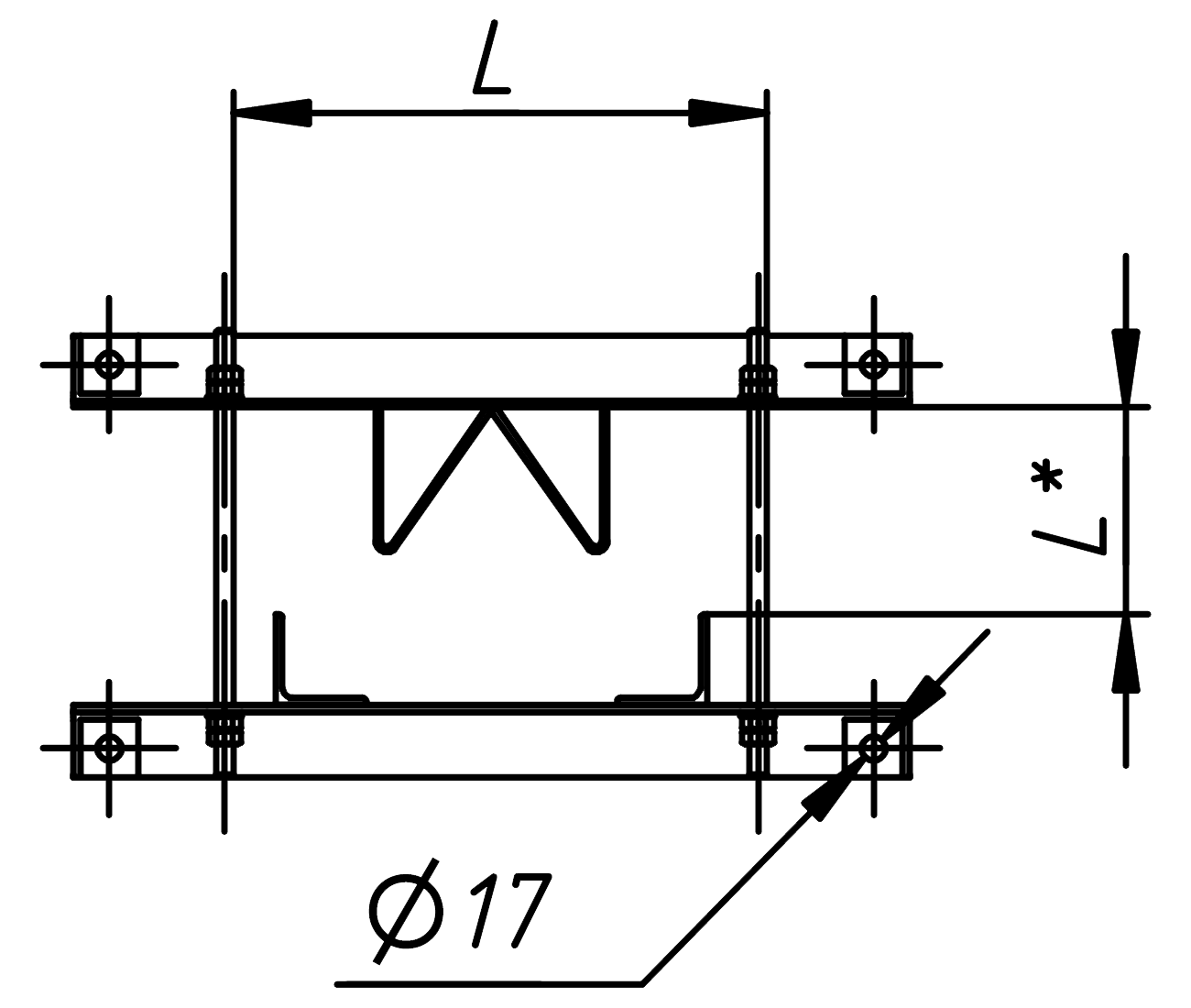

Description	Support legs series С10П	Leg size at the device fastening point, mm		Product weight, kg
Description	Support legs series С10П	At cross-arm, L	At stud, L*	Product weight, kg
УН.С10П	С10П.7А; С10П.11А; С10П.10Д	355±30	143±28	6.4
УН.САУ10П	САУ 10П.1	460±30	229±5	7.3
