Optical cross connect ОКМ-5120-48SC-08-8Т-18К/2PLC8

Manufacturer code: ОКМ-4620-48SC-09-9Т-72К

Cable Type Optical

Adapter Type SC

Product Weight ±10%, kg 2.2

Splice Closure Type Optical Cross Connect

Max. Cassette Qty, pcs 3

Cable Grommet Qty (1 Side)

Lead-In Cable Permissible Diameter

Non-Splicing Capacity Yes

Length, mm 450

Diameter, mm Ø230

Armour w/o armour

Grommet Sealing HST

Fiber Optic Port Qty, pcs 48

Operating Temperature, °C Minus 60 °C to 70 °C

IP Rating IP67

Distinctive features of optical cross connect ОКМ-5120-48SC-08-8Т-18К/2PLC8

Availability of SC adapter installation plates for cross-switching terminated drop cables and optical cords used as low-capacity cross.
Spacious sealed case made of impact-resistant polymer.
Easily operated.

Optical cross connect ОКМ-5120-48SC-08-8Т-18К/2PLC8 description

Optical cross connects ОКМ-5120-48SC-08-8Т-18К/2PLC8 are designed to protect the fiber optic cable welding points. Optical cross connect OKM-5120 design allows to splice multiple cables together, and the expanded interior space allows to lay excess fiber chucks observing all tolerances.

Optical cross connect ОКМ-5120 with housing of impact-resistant polymer may be operated at temperatures from −60 °C to +70 °C.

The design features a plate for SC fiber optic junction boxes and an input/output adapter for optical cords to switch and connect subscribers with drop cables and external patch cords terminated with SC connectors.

Configuration builder for optical cross connects

rasshifrovkamvot

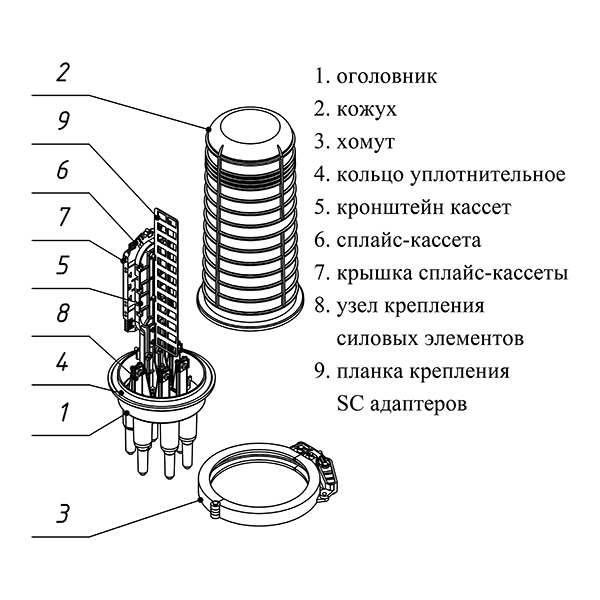

Optical cross connect design

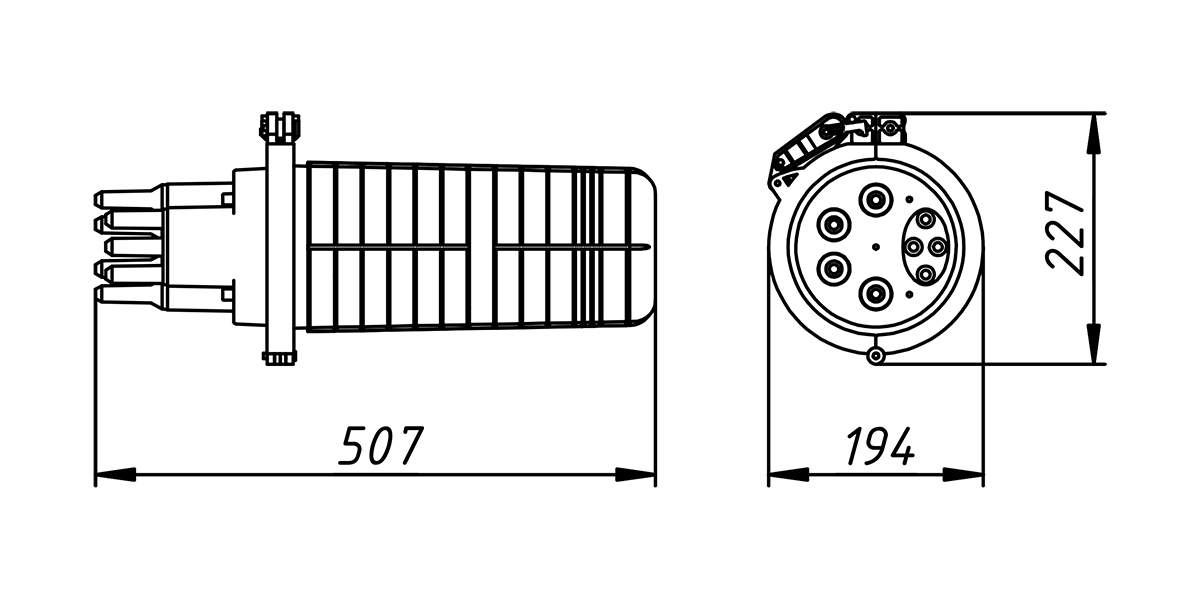

Overall dimensions of optical cross connect

Delivery set of optical cross connect ОКМ-5120-48SC-08-8Т-18К/2PLC8

Description	Qty
- housing	1 pc.
- sealing gasket	1 pc.
- unique sealing mechanism	1 set
- splice cassette	1 pc.
- splice cassette bracket	1 pc.
- fastening device for load bearing components	6 pcs.
- attachment plate for 48 SC adapters	1 pc.
- optical cord adapter	0 pcs.
- consumables	1 set
- installation guide (at request)	1 pc.
