Loop G-clamp СШ У is a universal loop G-clamp used for attachment of loops of OF (cable, FOC) at mounting components of supports and other bearing structures. The G-clamp is used to anchor, unanchor and drop FOCs.
Weight: 0.424 kg.
Cable max. termination strength: 0.8 kN.
Availability: warehouses in Saint Petersburg, Moscow.
Order at the manufacturer's price: +7 800 333-23-79.

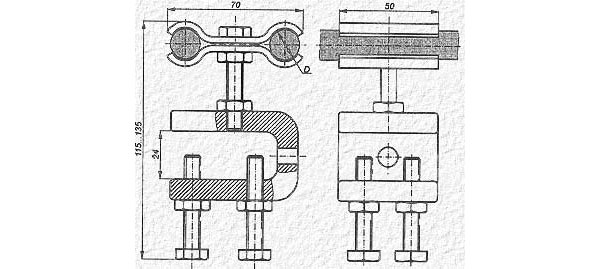

Delivery set of G-clamp
G-clamp СШ (У) consists of structural components:
- Hold-down pads — 2 pcs. (bottom, top).
- Tightening bolt, nut (attachment to the bearing structure).
- Nut with spring washer.
Technical characteristics of СШ (У). Table
| Brand |
Cable min. termination strength, kN |
Cable diameter (D), mm |
Pad thickness, mm |
Weight (kg) |
Note |
| СШ-03 |
0.8 |
9-22 |
|
0.5 |
Cable storage at hook |
| СШ-04/2 |
0.8 |
9-14 |
2 |
0.8 |
Universal |
| СШ-04/4 |
0.8 |
9-14 |
4 |
0.85 |
Universal |
| СШ-05/2 |
0.8 |
14-18 |
2 |
0.8 |
Universal |
| СШ-05/4 |
0.8 |
14-18 |
4 |
0.85 |
Universal |
| СШ-06/2 |
0.8 |
18-22 |
2 |
0.8 |
Universal |
| СШ-06/4 |
0.8 |
18-22 |
4 |
0.85 |
Universal |
| СШ-07/2 |
0.8 |
7-10 |
2 |
0.8 |
Universal |
Loop G-clamp installation

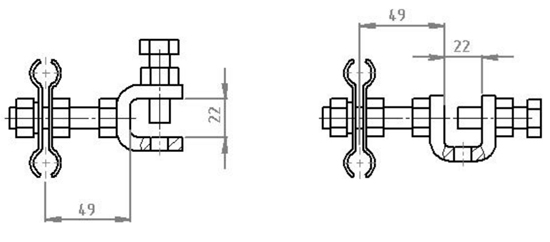

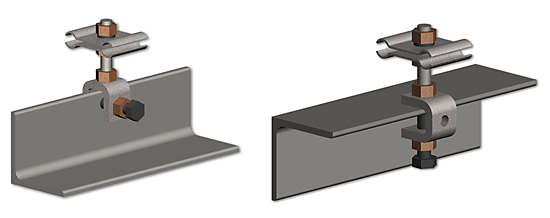

G-clamp СШ У is installed attaching its top with a bolt and fixing nut to the angle or channel structure at the point specified by the project.
The fiber optic cable is installed between the product top and bottom plates and is fixed with a stud. It is clamped with a nut and a spring washer. The loop G-clamp technical characteristics (i.e. parameters of pads and washers) determine the optical loop termination strength. This value is 0.8 kN for the universal G-clamp СШ (У).
Manufacture of G-clamps СШ
OOO Trading House MSK is the manufacturer and supplier of loop G-clamps СШ(У) and other model/size G-clamps in Russia and the near abroad.
The production capacity of the company's three plants allows to manufacture large volumes of parts for FOCL installation (including FOC fastening devices and components) and to fully meet the product requirements of existing and new customers.
In addition to СШ(У), the production includes brackets, intermediate links, mounting band, tension devices, distribution boards, hold devices, etc.
Loop G-clamp СШ У is designed for use in Russian climatic conditions and complies with all regulations and standards.
