Turnbuckle ПТР (intermediate link ПТР-7-1)

Description

Description

Description

Turnbuckles ПТР are used to smoothly adjust length of tensioning suspension devices or ADSS cables. Produced as per TU 3449-001-52819896-2010.

Талреп ПТР

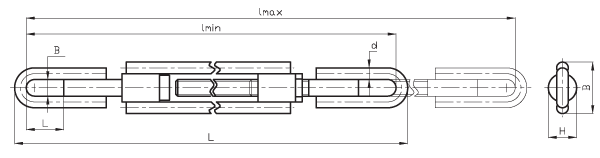

Description	Dimensions, mm								Adjustment range	Weight, kg	Min. breaking load, kN
Description	B	B1	H	L	L1	l min.	l max,	d	Adjustment range
ПТР-7-1	62	17	34	618	45	590	827	14	237	3.00	70
ПТР-10-1	68	20	34	618	45	586	819	16	233	3.78	100
ПТР-12-1	81	24	55	700	55	664	935	18	271	5.67	120
