Fastening device УК-П-01 is a hold device used for fastening of FOCs (type 8, carrying ropes) at FOCLs building applications. The cable is suspended from intermediate supports of overhead and other type lines, parts of buildings and structures and other support structures.
Availability: warehouses in Saint Petersburg, Moscow.
Delivery: free of charge to terminals.
Delivery set of hold device УК-П-01
- Eyebolt — 1 pc.
- Half-pad — 1 pc.
- Nut M12 — 4 pcs.

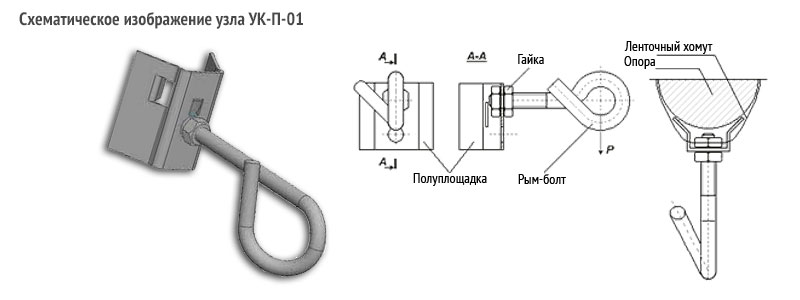

Fig. 1. Schematic view of product
Product manufacturing material: zinc coated steel (protection against corrosion, external influences). Complies with environment category C3.
The product is manufactured as per GOST 15150.
Installation of hold device
Install УК-П-01 as per parameters specified in design documentation (height, etc.). Attach it with band clamps.

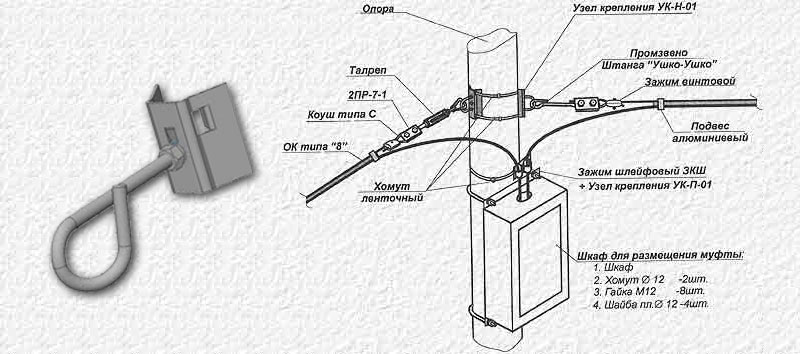

Fig. 2. Attachment method for УК-П-01
It is recommended to use spiral hold clamps ПСО for installation (see Fig. 2). Use clamps ЗП for attachment of type 8 cable.
