Hold device УП(3)-1200 is used to firmly attach ADSS and hold ADSSs or OPGWs to OPL metal structures.
Working load — ≤40 kN.
 |
 |

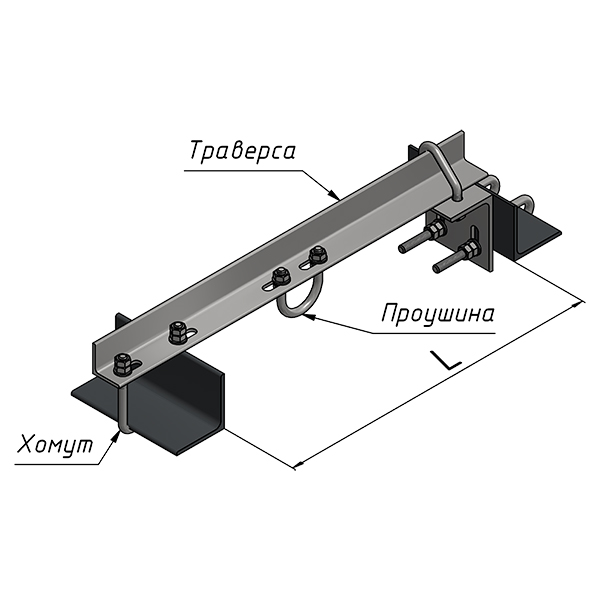

| Diagram 1 |

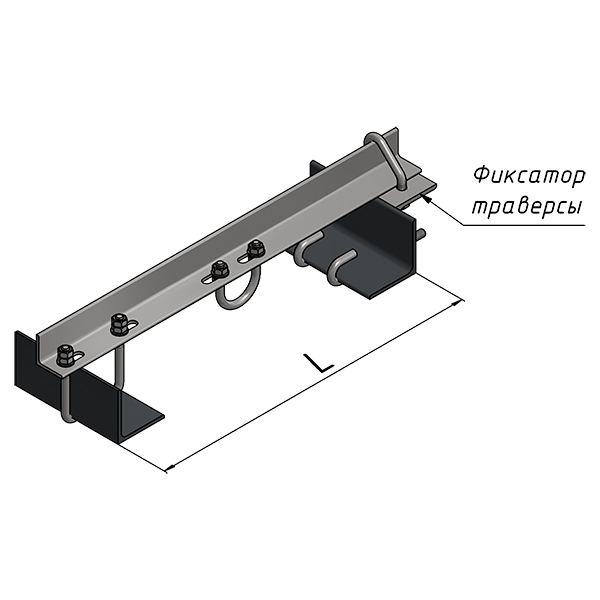

Diagram 2 |
| Description |
L, mm |
Product weight, kg |
| Diagram 1 |
Diagram 2 |
| УП(3)-700 |
≤ 550 |
≤ 580 |
5.25 |
| УП(3)-1200 |
≤ 1140 |
≤ 1000 |
8.82 |
| УП(3)-1700 |
≤ 1640 |
≤ 1500 |
10.71 |
| УП(3)-2200 |
≤ 2140 |
≤ 2000 |
12.59 |
| Delivery set of devices УП(3) |
| Description |
Cross-arm |
Cross-arm holder |
Lug |
Clamp |
| УП(3)-700 |
1 pc. |
1 set |
1 pc. |
1 pc. |
| УП(3)-1200 |
1 pc. |
2 sets |
1 pc. |
- |
| УП(3)-1700 |
1 pc. |
2 sets |
1 pc. |
- |
| УП(3)-2200 |
1 pc. |
2 sets |
1 pc. |
- |
