Hold device УП(2)-1700 is used to firmly attach ADSS and hold ADSSs or OPGWs to OPL metal structures.
Working load — ≤40 kN.
 |
 |

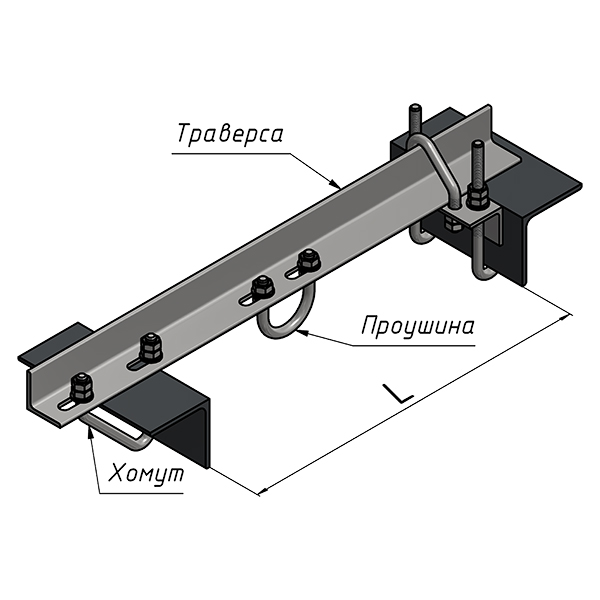

| Diagram 1 |

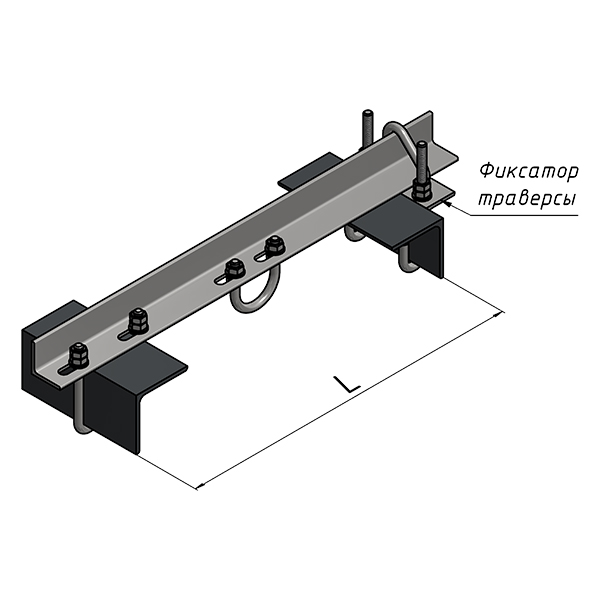

Diagram 2 |
| Description |
L, mm |
Product weight, kg |
| Diagram 1 |
Diagram 2 |
| УП(2)-700 |
≤ 475 |
≤ 540 |
4.48 |
| УП(2)-1200 |
≤ 975 |
≤1040 |
7.33 |
| УП(2)-1700 |
≤ 1475 |
≤ 1540 |
9.22 |
| УП(2)-2200 |
≤ 1975 |
≤ 2040 |
11.10 |
| Delivery set of devices УП(2) |
| Description |
Cross-arm |
Cross-arm holder |
Lug |
Clamp |
| УП(2)-700 |
1 pc. |
1 set |
1 pc. |
1 pc. |
| УП(2)-1200 |
1 pc. |
2 sets |
1 pc. |
- |
| УП(2)-1700 |
1 pc. |
2 sets |
1 pc. |
- |
| УП(2)-2200 |
1 pc. |
2 sets |
1 pc. |
- |
