Hold device УП(1)-110 is used to firmly attach ADSS cables or OPGWs to OPL metal structures.
Working load — ≤40 kN.
Delivery set:
- frame — 1 pc.
- u-bolt — 2 pcs.
- nut — 8 pcs.
- washer — 4 pcs.
|
 |

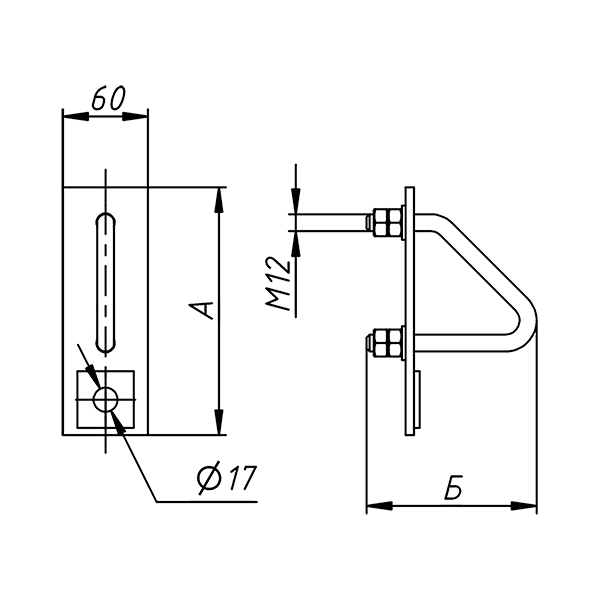

| Description |
Size of support corner, mm |
A, mm |
Б, mm |
Product weight, kg |
| УП(1)-70 |
63-70 |
175 |
120 |
0.83 |
| УП(1)-80 |
75-80 |
185 |
130 |
0.88 |
| УП(1)-90 |
90 |
195 |
140 |
0.93 |
| УП(1)-100 |
100 |
205 |
150 |
0.98 |
| УП(1)-110 |
110 |
215 |
160 |
1.03 |
| УП(1)-125 |
125 |
230 |
175 |
1.11 |
| УП(1)-140 |
140 |
245 |
190 |
1.18 |
| УП(1)-160 |
160 |
265 |
210 |
1.28 |
| УП(1)-180 |
180 |
285 |
230 |
1.38 |
| УП(1)-200 |
200 |
305 |
250 |
1.48 |
