Fastening device ХП-610 is used as intermediate fastener of ADSS cable suspension devices at overhead reinforced concrete supports.

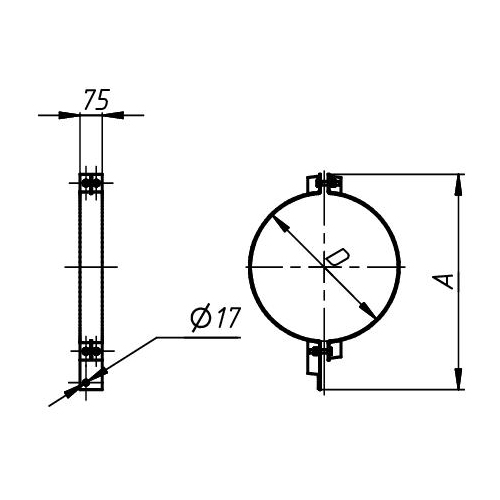

The bolts allow to adjust the clamp within +5/-25 mm of nominal D value.
Working load — ≤40 kN.
Delivery set:
- half clamp — 2 pcs.
- bolt — 4 pcs.
- nut — 8 pcs.
|
 |
| Description |
D, mm |
A, mm |
Product weight, kg |
| ХН-350 |
350 |
580 |
4.37 |
| ХН-375 |
375 |
605 |
4.58 |
| ХН-400 |
400 |
630 |
4.79 |
| ХН-425 |
425 |
655 |
5.00 |
| ХН-475 |
475 |
705 |
5.45 |
| ХН-500 |
500 |
730 |
5.66 |
| ХН-540 |
540 |
770 |
5.99 |
| ХН-580 |
580 |
810 |
6.33 |
| ХН-610 |
610 |
840 |
6.58 |
| ХН-650 |
650 |
880 |
6.91 |
