Fastening device УК-ОК-01

Manufacturer code: УК-ОК-01

Product Weight ±10%, kg 0.1

Coating zinc

Material Steel

Dimensions (L × W × H), mm 645х64х59

Color Natural

Working Load, kN 1.5

Distance between supports, m ≤ 30

Slot Width for Steel Band, mm 21

Rod Diameter, mm 8

Description

Fastening device УК-ОК-01 — fastening device УК-ОК-01 with Ø8 mm rod and welded slotted frame attached to a support with band НХЛ 1907/НХЛ 2007. It is used to tighten and fasten fiber optic or copper communication cables to OHL supports of urban electrical facilities (street lighting, ground electric transport), parts of buildings and structures.

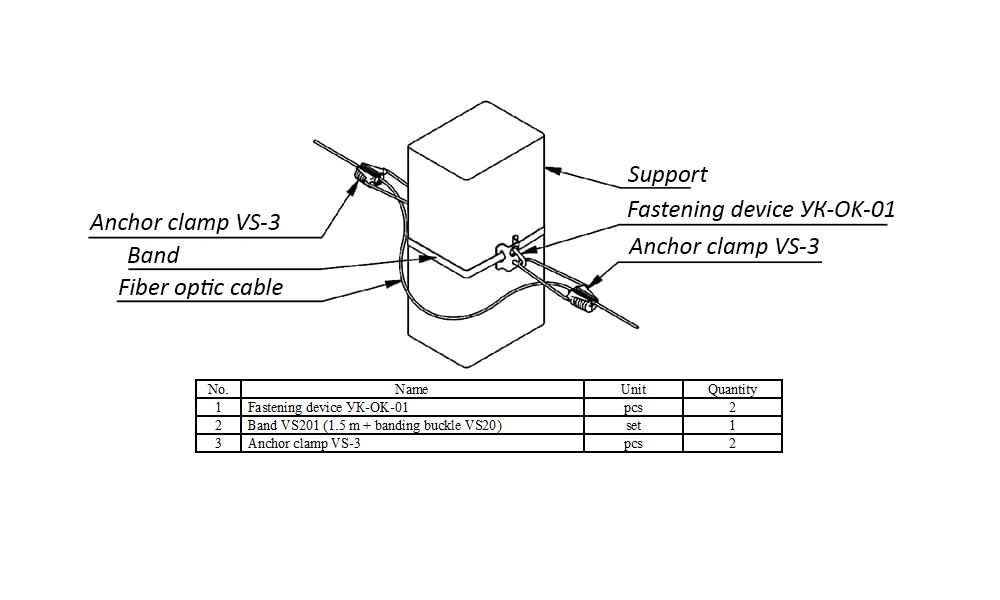

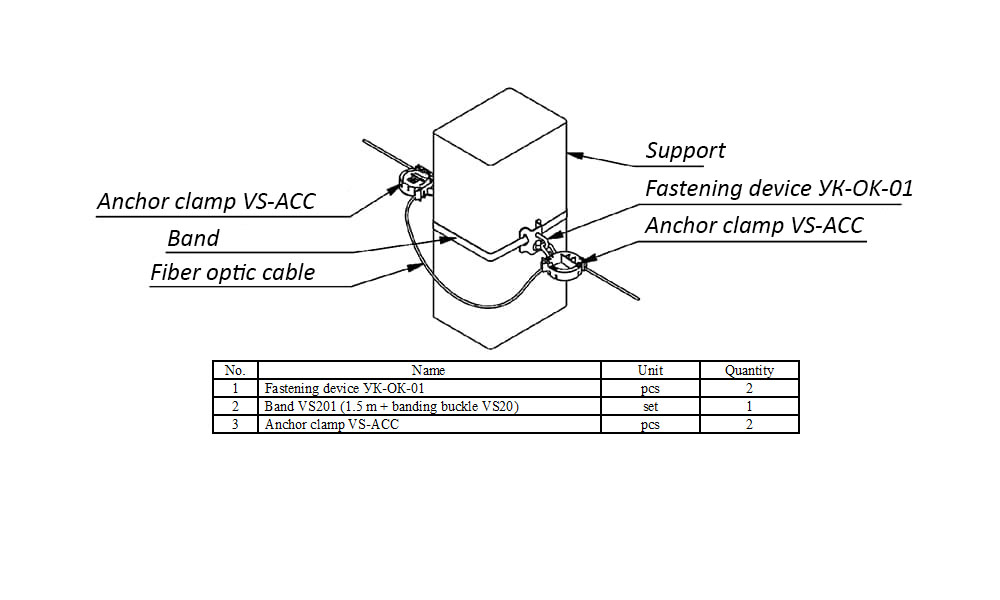

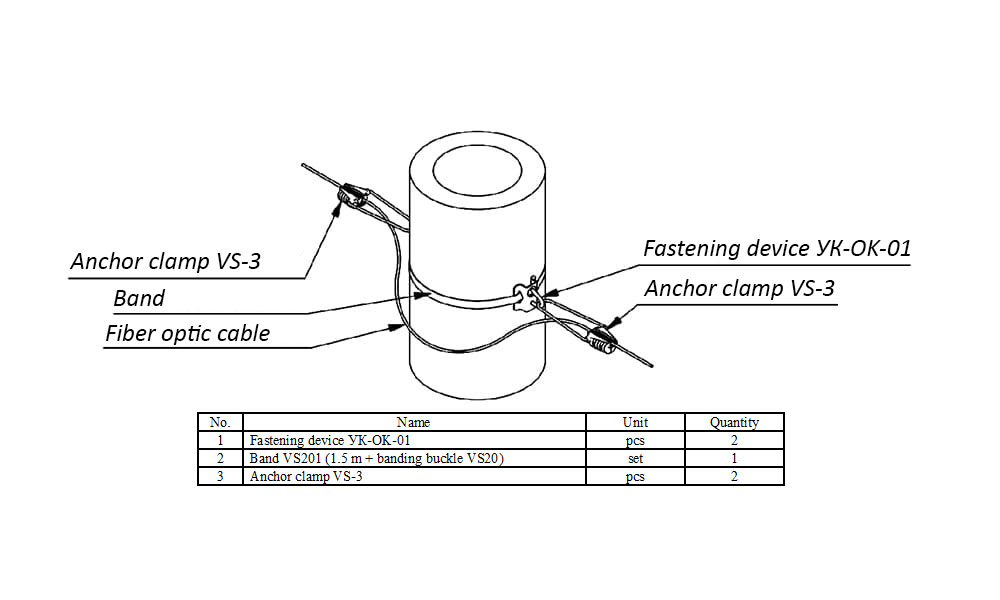

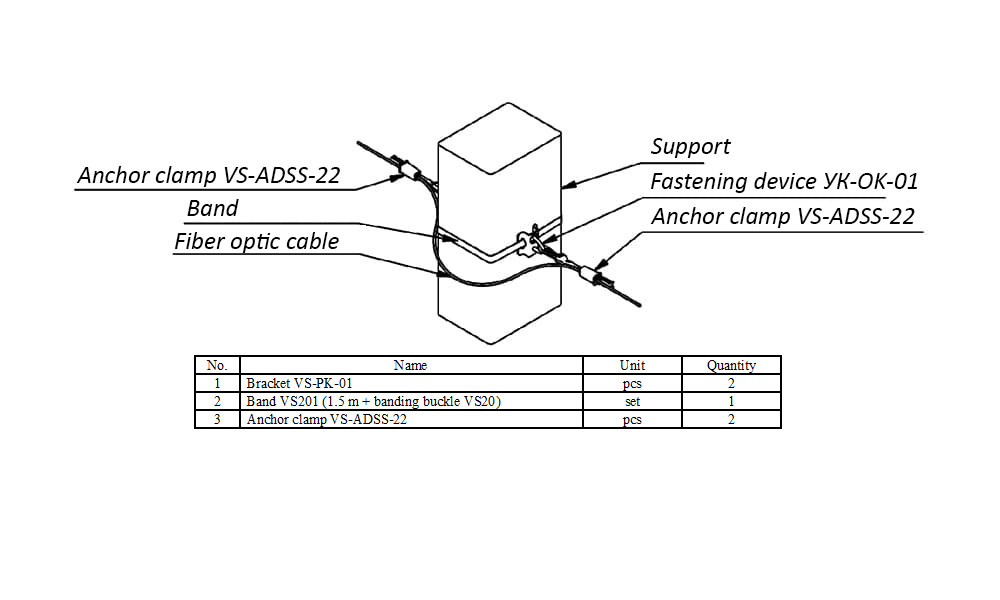

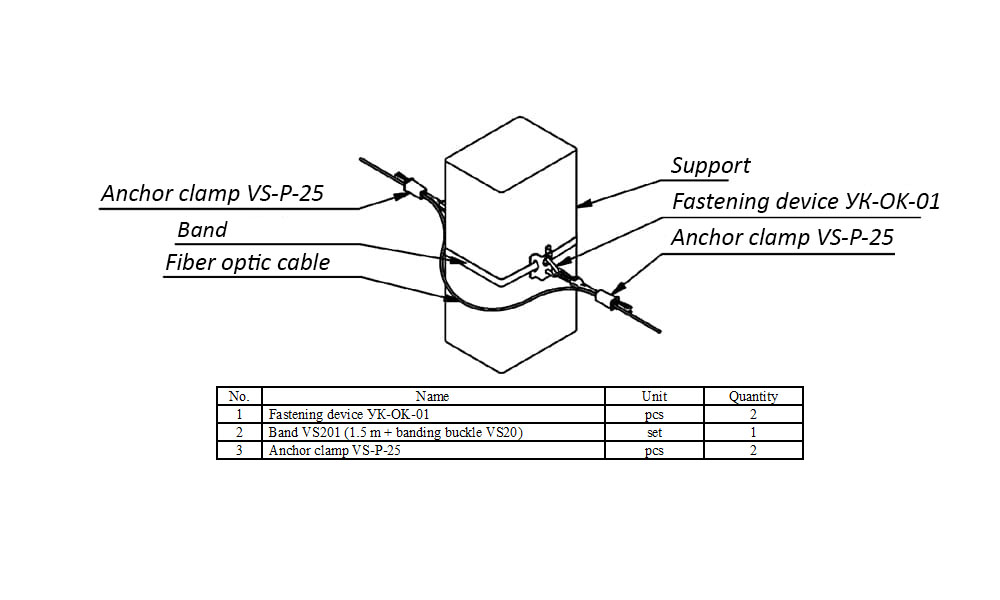

Attachment options:

With band НХЛ 1907, НХЛ 2007 to the support + band locks (banding buckle А20, С20 )
