Intermediate link Т-10-01 is used to adjust the length of ADSS cable suspension devices at OPL supports.

Turnbuckle length is adjusted smoothly allowing to accurately adjust the FOC slag.

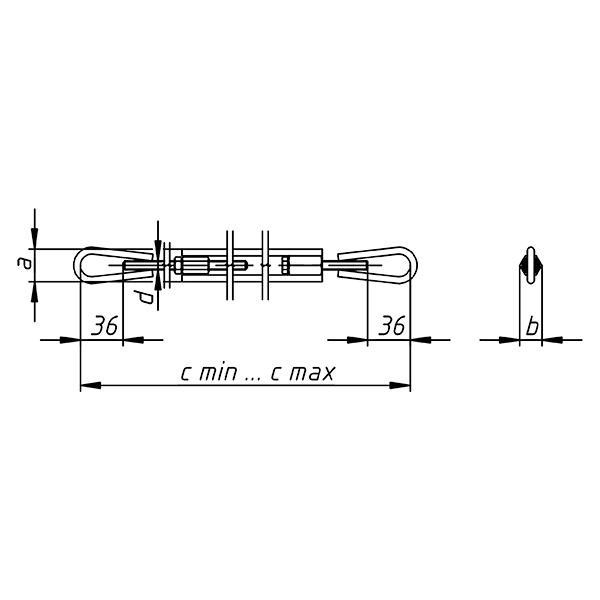

Description	Turnbuckle Т-10-01	Turnbuckle Т-20-01	Turnbuckle Т-30-01
Product weight, kg	0.4	0.7	0.92
Breaking load, kN	10	20	30
Eye diameter, mm	20	20	20
a, mm	32	36	36
b, mm	20	22	25
c min.	410	410	410
c max.	580	580	580
d, mm	8	10	12
Delivery set:
- housing	1 pc.
- loop	1 pc.
- nut	1 pc.
