See Fig. 1 for design of УК-П-02 (welded):

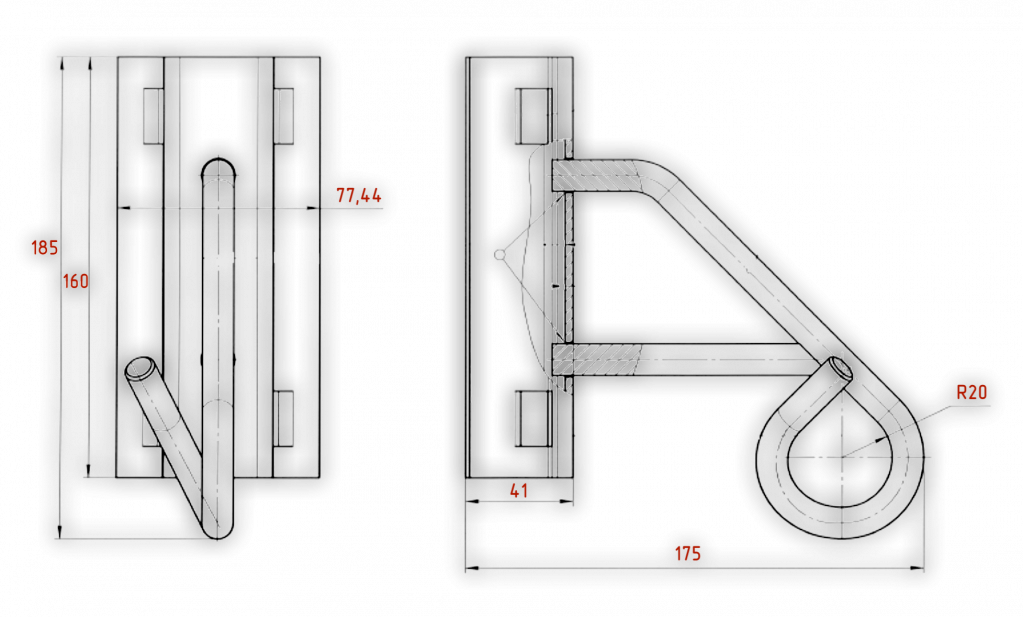

Fig. 1: Hold fastening device УК-П-02 (welded)
-
Max. vertical working load – Р=2 kN, max. load along FOC axis 0.5 kN;
-
Weight – 0.82 kg;
-
Working temperature range -60 to +40°С.
Fastening devices are installed to support frames with 2 band clamps using one layer of 0.7×20 mm band and the fixing lock. The clamp bracket itself is installed using tension pincers. Band clamp and tension pliers are not included to the device set.
If band clamps are used, then fastening devices are installed as per tension pliers instruction guide.
Package contents
The band clamp supply package includes:
Transportation and storage conditions
The manufacturer guarantees that main characteristics will not change if the consumer observes transportation and storage conditions of group 3 GOST 15150.
The product may be transported by all modes of transport according to the transportation rules applicable to this transport type.
Operational life
Device operational life — 25 years.
The actual service life is not limited to the above, but is determined by the product technical condition.
